30X40 Title Block Pack

Crisp, minimal + clean graphic style.

   Watch Promo

Save when buying our AutoCAD bundle: templates, title blocks, cover sheets, general notes, symbols, legends, lighting and power packages together.

PLEASE NOTE: *This title block pack requires the color table (.ctb) included with our 30X40 AutoCAD template to print correctly. You will need to purchase our template first if you don't already have it to get the .ctb file

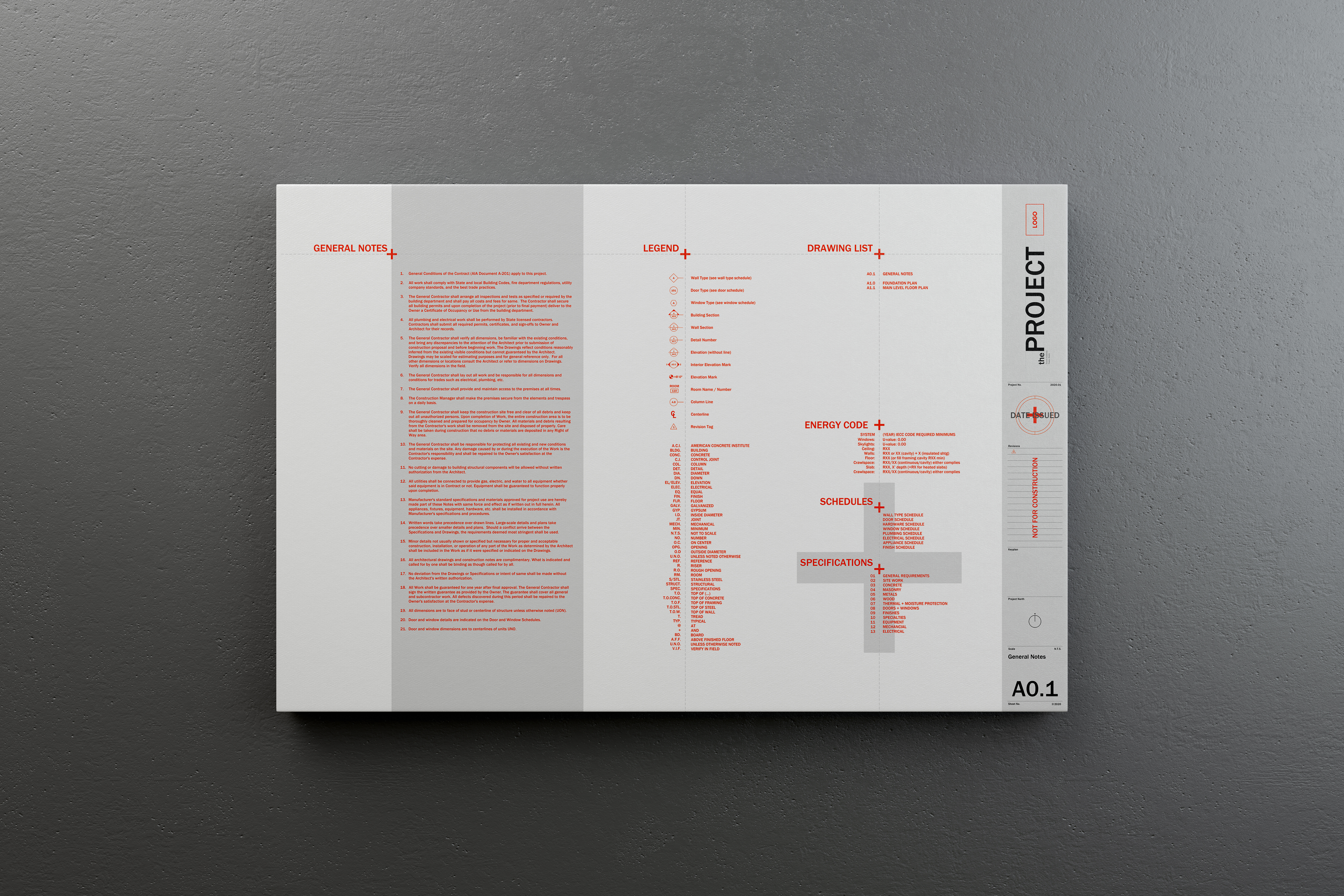

Complementing 30X40 Design Workshop's AutoCAD template, this set of predesigned, minimalist title blocks (.dwg format) includes three each of the most common metric + Imperial sizes, matching cover sheets in four sizes, and a general notes, legend and symbol sheet. Each one marries seamlessly with 30X40's AutoCAD drawing template + print settings (you'll need this for the .ctb file) Simply add your logo + branding and these simple, clean layouts are ready for plotting.


What's included (Autocad .dwg format):

  • Imperial title blocks (landscape format):
    • Arch D (36" x 24")
    • Arch D Cover Sheet
    • Arch D General Notes, Legend, Symbols + Drawing List Sheet
    • Arch C (24" x 18")
    • Arch C Cover Sheet
    • Tabloid (17" x 11")
  • Metric title blocks (landscape format):
    • A1 (841mm x 594 mm)
    • A1 Cover Sheet
    • A1 General Notes, Legend, Symbols + Drawing List Sheet
    • A2 ( 594mm x 420mm)
    • A2 Cover Sheet
    • A3 (420mm x 297mm

What's NOT included:




Minimalist Title Block Styling


Cover Sheet

General Notes, Legend, Symbols, + Drawing List Sheet



NOTE: To achieve the lineweights and colors shown in the images, you'll need the color table settings included with 30X40's AutoCAD template.


Want all of 30X40's AutoCAD templates? Purchase the bundle here.

Course Curriculum


  Start Here
Available in days
days after you enroll

Frequently Asked Questions


Is this a course, will it teach me AutoCAD?
No, these are digital drawings (title blocks + cover sheets) for use with AutoCAD. You must know how to use AutoCAD to make use of them.
I'm using an earlier version of AutoCAD (or other CAD program), will this work with it? What will I lose by converting it to an older version?
The template has been confirmed to work with versions 2013 and newer of AutoCAD. Unfortunately, I don't know how the template will behave or what aspects may perform differently with earlier versions or the myriad other CAD programs available (ArchiCAD, DraftSight, BricsCAD, Vectorworks, etc.) A Google search will often yield the best answers specific to your software.
What size title blocks are included?
Check the description above. If you need additional sizes, they're easily customized to suit your needs.
Does the download include a color table (.ctb) or print settings?
No. These assets are meant to complement 30X40's AutoCAD template. So, to achieve the results you see in the images (line weights + colors) you'll need 30X40's .ctb file included with the AutoCAD template.
What's your refund policy?
As these are digital assets you receive immediately upon purchase I'm not able to offer refunds.
What format are these delivered in?
These are for use with Autocad and offered in .dwg format.
Will these work with Revit?
No, these are designed to be used with AutoCAD.
Will this work with ArchiCAD?
The short answer is: I don't know. The template has been confirmed to work with **AutoCAD versions 2013** and newer only. I don't know if the template will import or what aspects may perform differently with **ArchiCAD** (or any program other than **AutoCAD**). If you purchase it with the intent to import it into ArchiCAD please know that I'm not able to provide any technical support.
Do I need the 30X40 AutoCAD template for this to print correctly?
Yes! This requires the .ctb file which is included with the 30X40 AutoCAD template to print correctly.
Can you send me the .ctb file that I need for this to print correctly?
Sorry, the .ctb file is only included with 30X40's AutoCAD template file, you'll need that too.
